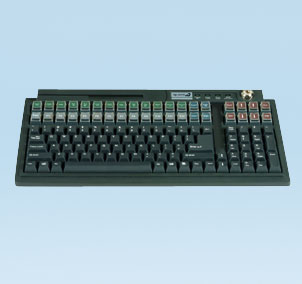

Logic Controls LK1600 Series

Only 16 inches (405 mm) wide, the LK1600 can fit in almost any workstation area. It includes an alphanumeric keyboard with a full compliment of 55 function and numeric keys and an optional magnetic stripe reader. Furthermore, the unit also has a PS/2 I/O port to enable the daisy-chaining of other input devices such as a scanner or check reader. The LK1600 programmable keyboard is thus an ideal solution for the retail, hospitality, travel, banking, and insurance industries.

Easy and Advanced Programming
The LK1600 is one of the easiest and most programmable keyboards on the market. All 120 keys are programmable and 38 keys are relegendable with transparent key caps. Using a powerful Windows-based programming utility that stores key definitions in a data file, an integrator can create a program layout for multiple keyboards, rather than programming key by key, keyboard by keyboard. The keys can be programmed with multiple shift levels to further increase the number of effective programmable keys, and a key lock switch is used to select the program layer - e.g., manager override, department 1, department 2, etc.

Logic Controls LK1600 Series Features:

• 120 key, programmable alphanumeric keyboard
• Optional integrated credit card reader
• All 120 keys are programmable; 38 keys are relegendable
  with transparent key caps
• Multiple layers of key definitions and multiple shift levels
• Keylock switch for layer selection
• Programmed with a powerful Windows-based
  programming utility software
• Create program layout for multiple keyboards -
  programming utility saves templates as data files
• Program up to 1800 characters or codes per key
• Programmable inter-character and inter-string time delays
• Patented wedge port technology to daisy chain barcode
  scanner and/or other external keyboard devices
• Full travel, tactile key switches
• Programmable without special programming switches,
  programming kits, TSR programs or the need for
  internal batteries
• PS2 or USB interface
